Fig. 6 | Eye and Vision

Fig. 6

From: Long scan depth optical coherence tomography on imaging accommodation: impact of enhanced axial resolution, signal-to-noise ratio and speed

Fig. 6

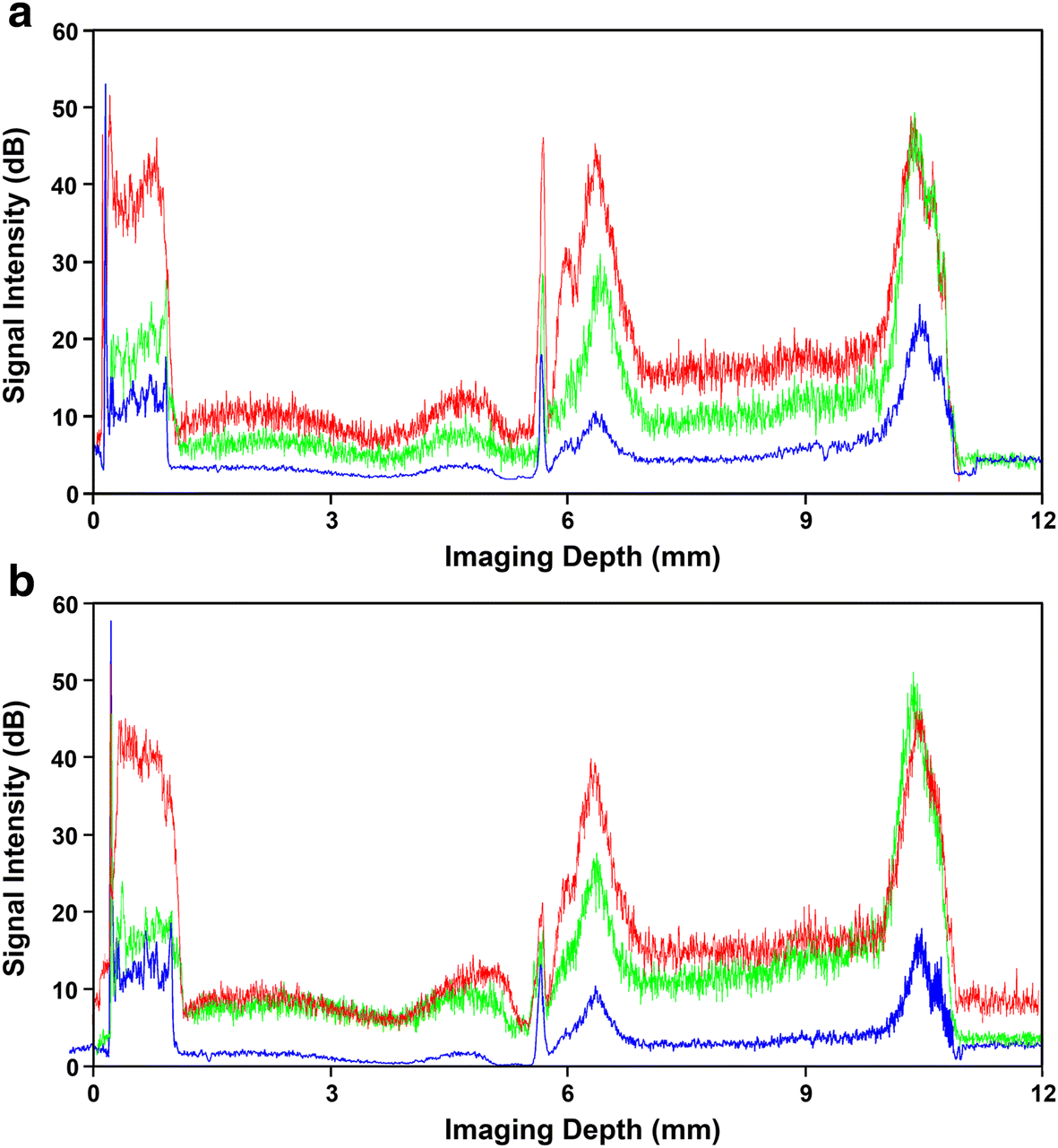

The longitudinal reflectivity profiles from a 26-year-old subject under the relaxed (a) and the accommodative (b) states. Blue line: Longitudinal profile obtained from system 1; Red line: Longitudinal profile obtained from system 2; Green line: Longitudinal profile obtained from system 3. The contrast scales were adjusted before obtaining the reflectivity profiles to demonstrate the peak locations representing the measured boundaries
