Fig. 5 | Eye and Vision

Fig. 5

From: Long scan depth optical coherence tomography on imaging accommodation: impact of enhanced axial resolution, signal-to-noise ratio and speed

Fig. 5

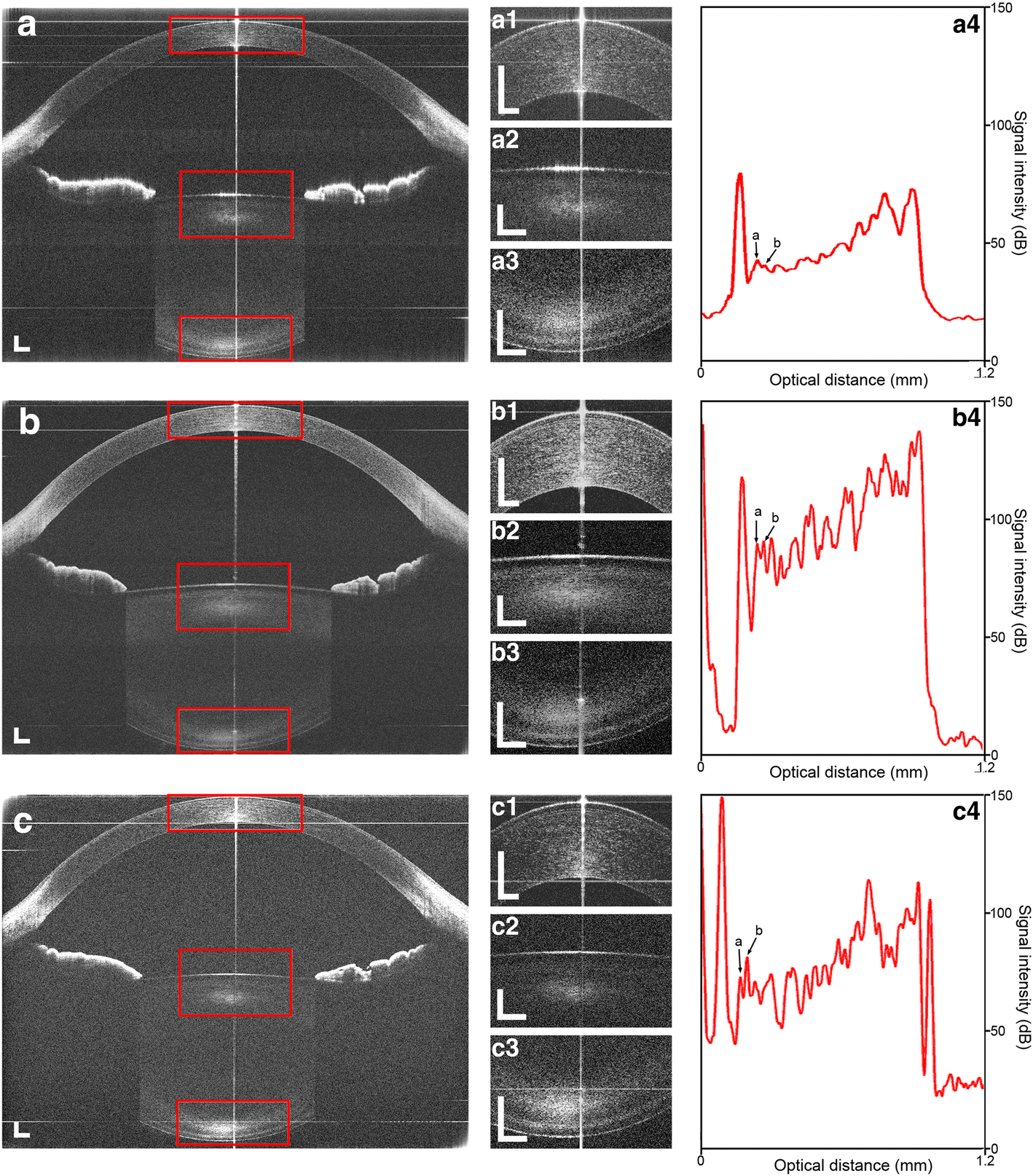

The uncorrected images taken from the entire anterior segment of a 26-year-old subject using the three systems. a: Image obtained by system 1 using a CCD camera with 2048 pixels; b: Image obtained by system 2 using a CCD camera with 4096 pixels; c: Image obtained by system 3 using a CMOS camera. a1-a3, b1-b3, c1-c3: The magnified images of the corneal apex (1), the anterior (2) and the posterior (3) of the lens surface using the three systems, respectively. a4, b4, c4: Longitudinal reflectivity profiles through the cornea. The boundaries of the Bowman’s layer were identified as the peaks a and b. Bar = 500 μm
