Fig. 3 | Eye and Vision

Fig. 3

From: Long scan depth optical coherence tomography on imaging accommodation: impact of enhanced axial resolution, signal-to-noise ratio and speed

Fig. 3

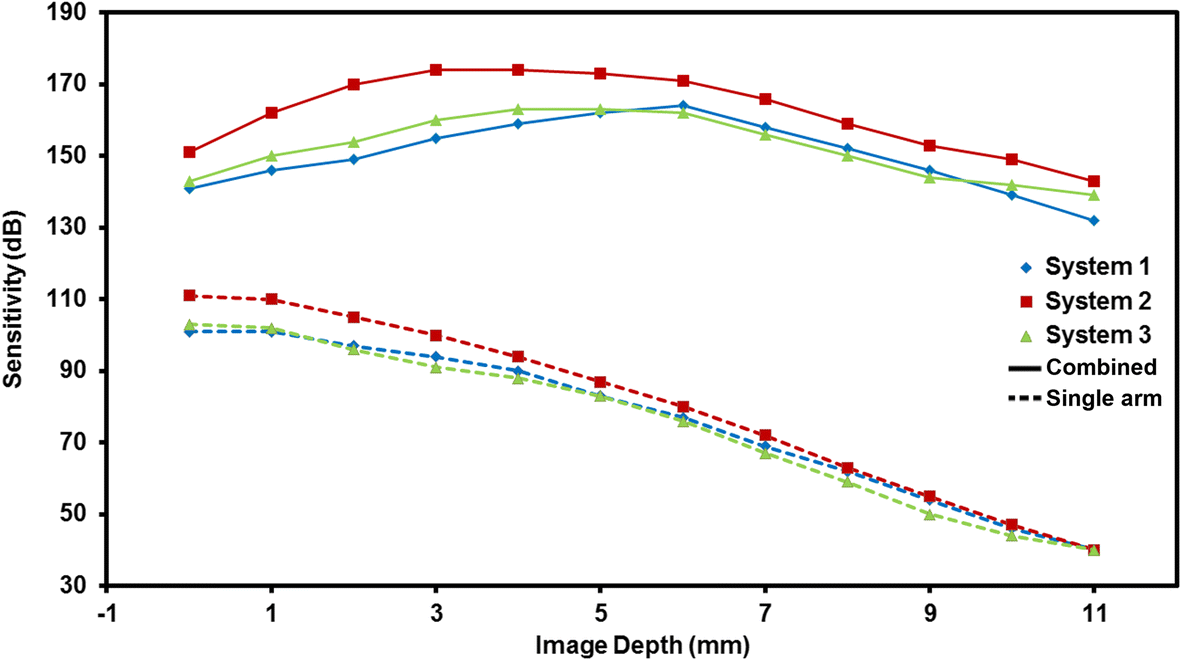

The sensitivity of the three systems measured at different image depths from the zero-delay line. Blue line, system 1 with CCD 2048 pixels; red line, system 2 with CCD 4096 pixels; green line, system 3 with CMOS. The solid line was the combined sensitivity acquired from two reference arms; the dotted line was obtained from a single arm
