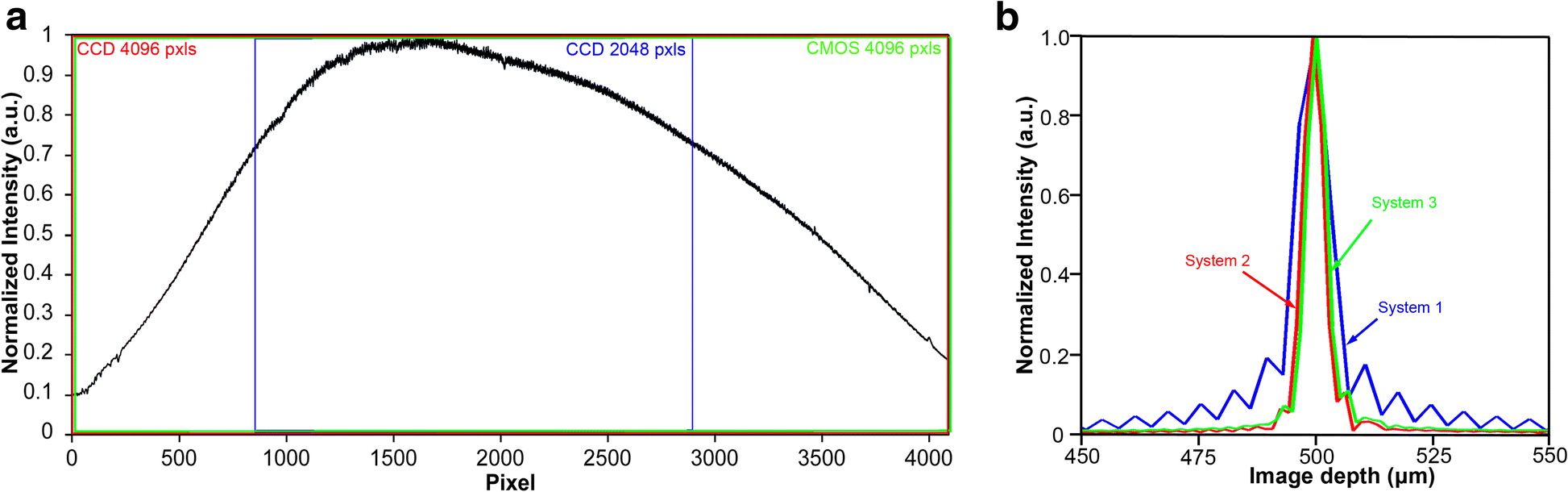

Fig. 2From: Long scan depth optical coherence tomography on imaging accommodation: impact of enhanced axial resolution, signal-to-noise ratio and speedSpectrum of the light source captured by the three different systems (a) and the point spread functions (PSF) obtained using the three systems at a path difference of 0.5 mm (b). a: The areas of the available pixels from the cameras are indicated in blue (CCD with 2048 pixels), red (CCD with 4096 pixels) and green (CMOS with 4096 pixels) rectangles, respectively. b: Blue, the PSF of system 1 with the measured resolution of 10.9 μm in air; Red, the PSF of system 2 with the measured resolution of 7.0 μm in air; Green, of system 3 with the measured resolution of 7.0 μm in airBack to article page
